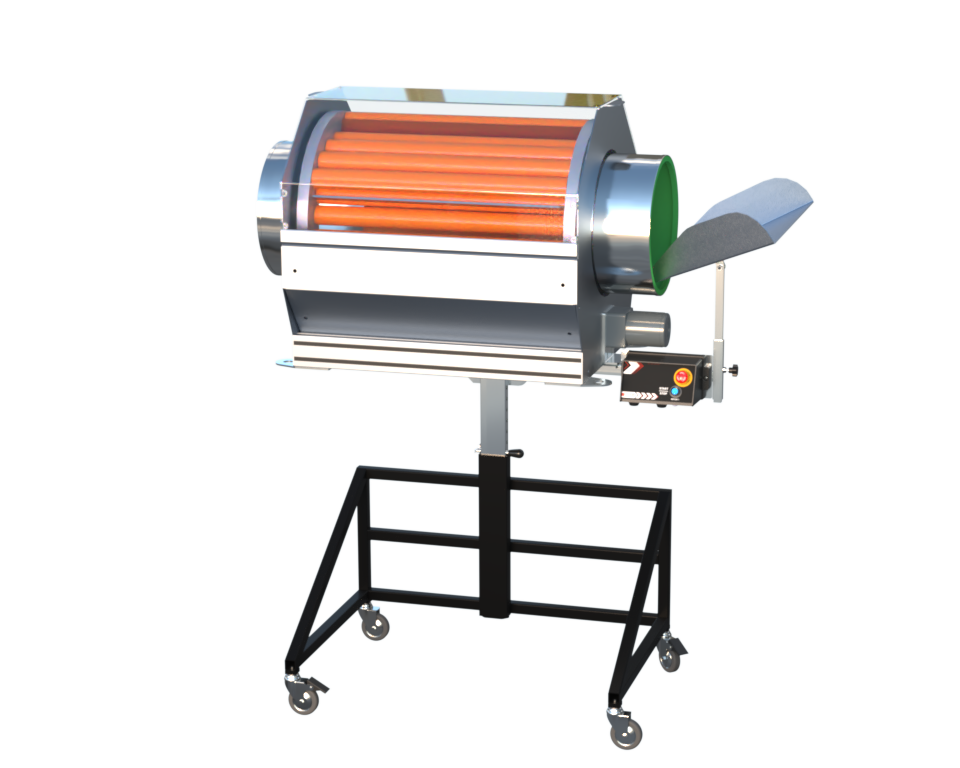

Drum separator with single rollers adjustment
The S4200 rotary drum separator is a compact, user-friendly machine with a very wide application range, both in terms of quantity and size of components to be separated.
The separation distance is set by adjusting the individual rollers.
Height and tilt adjustment via galvanised tubular steel legs and galvanised steel articulated telescope ensure maximum safety and stability.
The high level of engineering of this series guarantees easy customisation thanks to a wide range of accessories and standardised solutions.
The quality of the components used guarantees excellent reliability over time.
|
Frame |
Rotating drum support base made of extruded aluminum alloy profile anodized 35×35 mm and 80×40 mm. |
||||||||||||
|
Stand support |
drum incline angle adjustment by galvanised steel hinge |
||||||||||||
|
Rotating drum |
Ø510×650 mm or 950 mm |
||||||||||||
|
Drive |
direct three phases asynchronous motor 400Vac-50Hz-3Ph |
||||||||||||
|
Control panel |
on/off, E-Stop, thermal overload protection |
||||||||||||
|
Types |
|
|
Picture |
P/N |
Description |
 |
TRM | ON/OFF, E-Stop, thermal overload protection |
 |
IBox-S | ON/OFF, E-Stop, speed adjustment |
Reduced diameter drum separator with single roller adjustment
Types
| Ø310 x L650 | Ø310 x L950 | |
| PVC rollers |
Mod. S4300 | Mod. S4310 |
Frame
anodised extruded aluminium profile drum base frame, aluminium lateral/frontal walls, polycarbonate cover, aluminium infeed chute
Stand support
galvanized steel hinge, galvanized tubolar steel legs, painted steel base, castors with brake (2) and feet
Drum
steel inlet/outlet tubes, aluminium rings, PVC or stainless steel rollers, single roller adjustment
Drive
three phases asynchronous motor 400Vac-50Hz-3Ph
Control
on/off, E-Stop, thermal overload protection

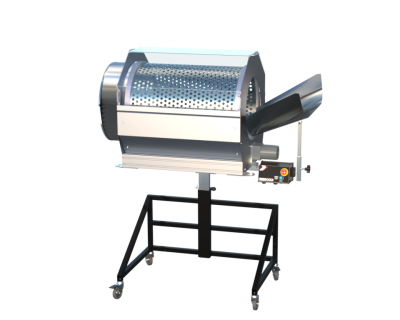

Steel drum separator with holes
Types
| Ø485 x L700 | Ø485 x L1000 | |
| holes only | Mod. S4400 | Mod. S4410 |
| holes with tubes | Mod. S4420 | Mod. S4430 |
Frame
anodised extruded aluminium profile drum base frame, aluminium lateral/frontal walls, polycarbonate cover, aluminium infeed chute
Stand supports
galvanised steel hinge, galvanized tubular steel leg, painted steel base, castors with/without brake (2+2)
Drum
steel with holes or holes and tubes
Drive
three phases asynchronous motor 400Vac-50Hz-3Ph
Control
on/off, E-Stop, thermal overload protection

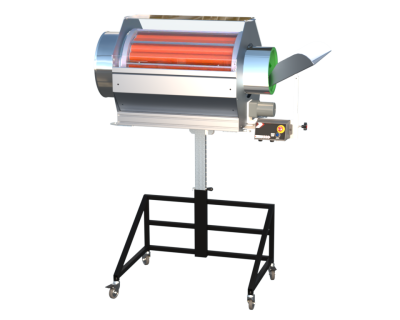

Drum separator with quick rollers adjustment
Types
|
Frame
base supporto tamburo rotante in profilato estruso in lega di alluminio anodizzato, pareti laterali/frontali in alluminio, copertura in policarbonato, scivolo d’ingresso in alluminio
Stand supports
galvanised steel hinge, galvanized tubular steel leg, painted steel base, castors with/without brake (2+2)
Drum
steel inlet/outlet tubes, aluminium rings, PVC or stainless steel rollers, single-screw rollers adjustment
Drive
three phases asynchronous motor 400Vac-50Hz-3Ph
Control
on/off, E-Stop, thermal overload protection
